DS-6v2 Double Square
A Must-Have Handy Tool

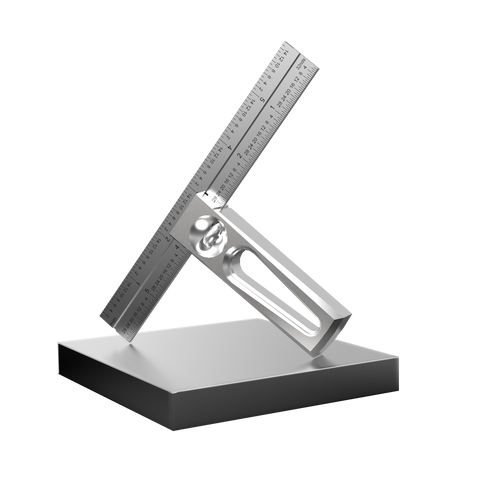

Featuring the try square, depth gauge, and a marking gauge, the Double square is a must have. Beautifully finished, this square will last forgenerations without any tarnishing or rust. It is a handy tool simply because they do not contain a 45° leg. The DS-6 Double Square is precisely milled, creating a tool with an accuracy limit of less than 0.002" (0.05mm) over the length of a fully extended blade.
Try Square
With an exceptional straightness of 0.002”(0.05mm), the SE-24 Straight Edge can be used to calibrated the flatness of your workpiece.
Depth Gauge
This can be used to determine the depth of mortises, dados, rabbets, holes and other assorted recesses.
Marking Gauge
Using this marking gauge, you can quickly and precisely layout the lines.
Same Scale on the
Same Edge at Any Time
The 6” Imperial blades feature left-to-right and right-to-left reading 32nds and 16ths.

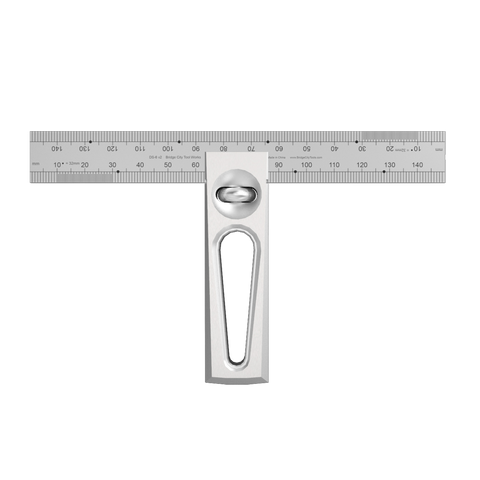

(The 150mm Metric blades feature left-to-right and right-to-left reading 1 mm with extra 0.5mm resolution at the end.)
You can flip the square over and view the same scale on the same edge. These blades have the industry standard layout with similar scales onopposite edges. This is an incredible improvement and will create fewermistakes.
Laser- etched Graduations
The graduations (1/16", 1/32") are laser- etched for excellent readability.
Material
The DS-6v2 Double Square is milled from stainless steel plate that has great rust and wear resistance. The complete PVD coatings on all the surfaces present you with the unmatched scratch resistance andincredible hardness.
Specifications
DS-6v2 Double Square
"Some images on this page are computer-generated representations of the product and may differ from the actual product. Colors, textures, and other details may not be accurately represented in the images. Please refer to the product description and specifications for more information."
