HP-12 Dual Angle Bench Plane

HP-12

Dual Angle Bench Plane


In Stock

€699.00€699.00

*Shipping costs and VAT of EU regions will be calculated at checkout.

*Orders outside EU regions--Click HERE to view details>>

Breaking Tradition

with Amazing Versatility!

HP-12

Dual Angle Bench Plane

The HP-12 Dual Angle Bench Plane, designed by John Economaki, is unlike any other smoother—past or present in the quality, workmanship, and performance. We believe this dedication to quality and performance will rub off in your work. This lightweight plane is one of the most versatile and usable planes and may be the only bench plane you’ll ever need!


INTRODUCTION VIDEO

Video


The Ergonomically Designed

Front and Rear Totes


The rear tote is investment cast 304 stainless steel with the two interior cavities painted black. Shaped to invoke the illusion of movement. The highly polished curved surfaces add a nice reflective contrast to the colors of the planecomponents. The variable chamfer at the top of the tote ties in nicely with the graceful chamfers of the plane sides. The angle is perpendicular to the iron edge directing the forward motion of the plane straight at the cutting edge.


All metal front and rear totes which fit nicely in both small and large hands.The front tote “mushroom” is turned from aluminum, bead blasted and anodized black. This shape is more hand friendly than the more common “balloon” totes and is threaded into the throat plate allowing for precise adjustment of the mouth.


Unique Blade Retention Mechanism




Simply pull the sculpted “D” lever and the entire blade retention mechanism swings out of the way to facilitate iron removal. It is fast, fun, the pressure is adjustable, and you have never seen anything like it. There are no free parts—the mechanism is integrated into the body.


Iron Adjustment


Both cutting depth and cant (iron angle) can be adjusted by the lead screw under the lever easily and precisely.


Cutting Depth Adjustment



The iron is engaged to the depth adjuster via a pin nut attached to a 0.5mm thread pitch lead screw.




One full revolution of the lead screw increases the depth of cut by 0.1mm (0.004”). The lead screw is housed in a split pivot nut turned from solid brass and the result is a backlash free mechanism that is field adjustable by hand. This mechanism is as smooth as butter in use.

Iron Cant Adjustment

Iron canting can be achieved by shifting the lead screw side to side but in practice this is not as preferable, or as fast, as canting with the fingers through the sides of the plane body.


Dual Ground Irons


The robust irons (0.225”/5.7 mm thick) are a full two inches wide (50.8 mm) and hardened to Rc 60-62 from A2 tool steel. They are lapped to a mirror finish—no flattening required.

The HP-12 Dual Angle Bench Plane comes with two irons with four unique purposes. The available grinds eliminate the need for multiple planes. This plane, with these attack angle choices, may be the only bench plane you will ever use or need.



The attack angle of 42 degrees is used for low angle work.



The attack angle of 47 degrees is used for standard work.



The attack angle of 60 degrees is used for woods you like to swear at.


Lastly, there is a scrub iron grind. It is included and designed to be used for quick cross grain flattening of wavy or difficult grained stock.


Blade Guard


When bedded, the non-business edge is protected with an aluminum blade guard which is mandatory when sharpening to avoid injury. The guard attaches to the iron with rare earth magnets.

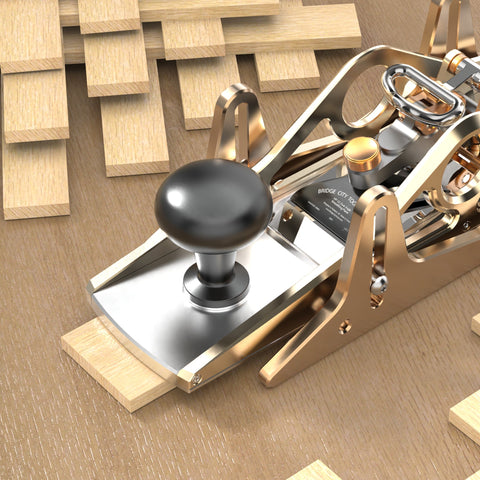

Ability to Add Depth Skids



The single distinguishing feature of the HP-12 over any other plane made today is the ability to add depth skids; essentially turning your plane into a 51mm (2”) thickness planer.


The ability to thickness plane to a precise thickness is an incredible benefit for box makers, for making louvers, models, musical instrument makers, inlay strips…etc.


The skids feature rounded soles which not only reduce friction but allow you to set them at different depths for creating accurate tapered stock (louvers) without having to sand. Either straight or tapered, you cut until the plane no longer makes a shaving—it is fun and the accuracy is amazing.


It is entirely possible, and easy, to make multiple components with a thickness that does not vary more than 0.002” (0.05mm)!



Specification




Parts Breakdown


Blade Tension

Mechanism

Blade

Iron

 Adjustment

 Mechanism

Main Body

Depth Skids Assembly

"Some images on this page are computer-generated representations of the product and may differ from the actual product. Colors, textures, and other details may not be accurately represented in the images. Please refer to the product description and specifications for more information."

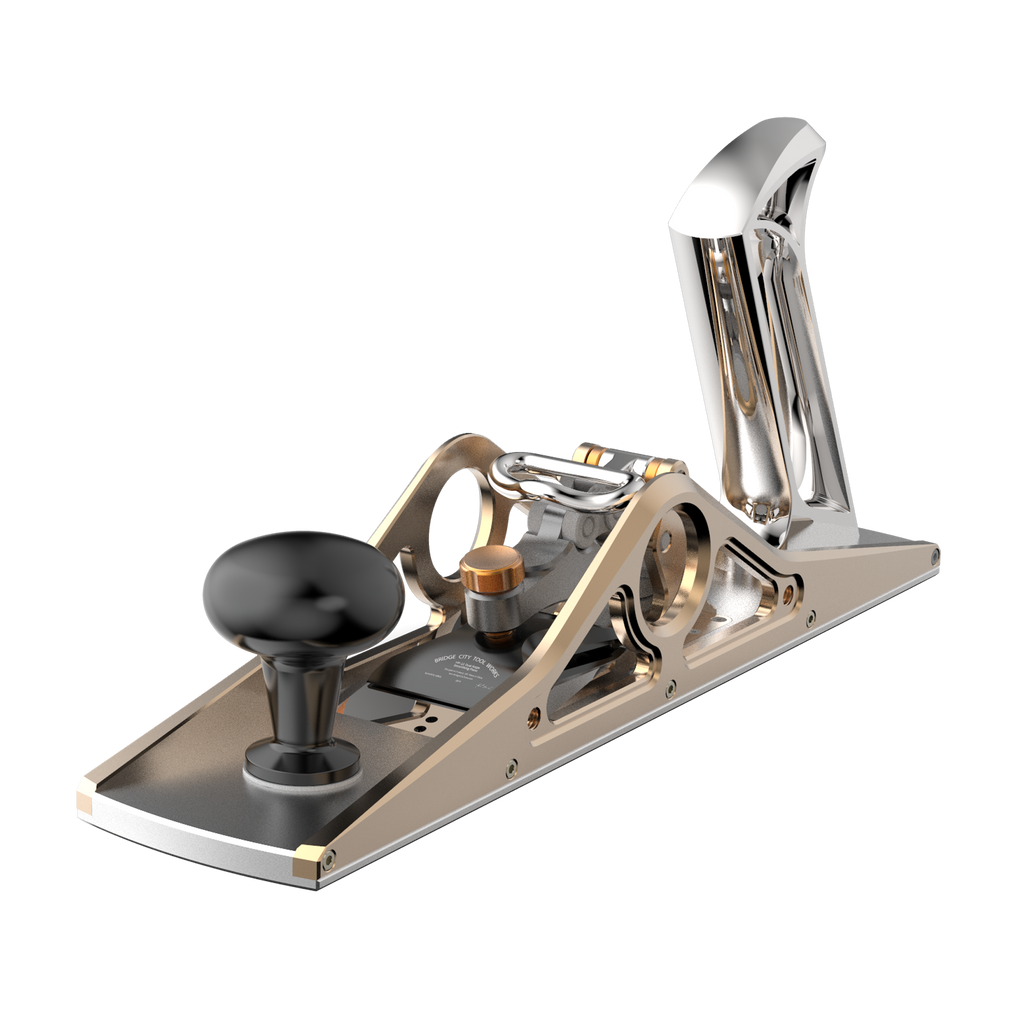

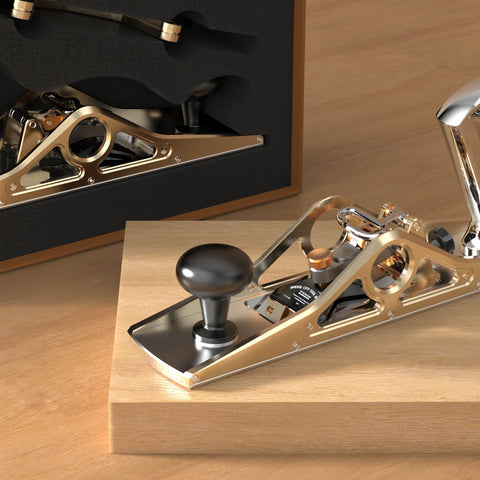

HP-12 Dual Angle Bench Plane
